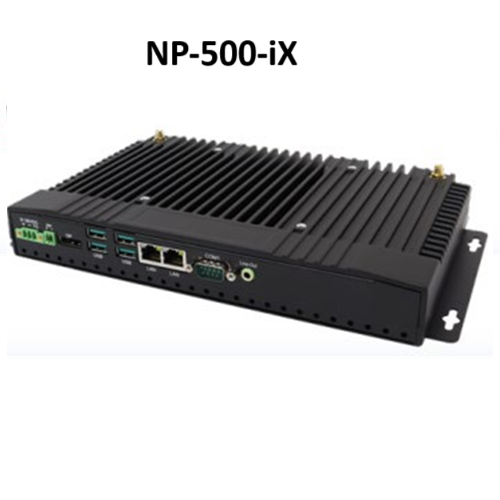

NP-500-iX Rugged Embedded Computer
Palm‑Size Rugged Industrial Computer – Fanless Embedded PC with 9–36VDC Power Input - Engineered by IVC Displays for industrial automation and edge computing.
Technical Specifications
| NP-500-iX – Technical Specifications | |
|---|---|
| Processor | Intel® Celeron® J6412 (Quad‑Core, 2.0 GHz) |
| Graphics | Intel® UHD Graphics |
| Memory | 8GB LPDDR4 (onboard) |
| Storage | 128GB mSATA SSD (standard) |
| Display Output | HDMI + LVDS/eDP (model dependent) |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
| Serial Ports | 2 × RS‑232/422/485 (BIOS selectable) |
| LAN | 2 × Intel® Gigabit Ethernet (I210/I211) |
| Wireless | Optional Wi‑Fi / Bluetooth (via M.2) |
| Expansion | M.2 B‑Key + M.2 E‑Key |
| Power Input | 12–24VDC wide‑range input |
| Cooling | Fanless aluminum thermal design |
| Operating Temp | ‑10°C to +60°C (standard) |
| Mounting | VESA / panel mount (varies by configuration) |
| Dimensions | Compact embedded enclosure |
| Operating Systems | Windows 10 IoT, Windows 11 IoT, Linux |
| Applications | Industrial automation, kiosks, control systems, HMI, OEM integration |
Frequently Asked Questions
What is the NP‑500‑IX?
The NP‑500‑IX is a compact fanless embedded industrial computer powered by the Intel® Celeron® J6412, designed for automation, control systems, kiosks, and OEM integration.
What processor does it use?
It uses the Intel® Celeron® J6412 quad‑core processor, offering excellent performance per watt for industrial workloads.
Does it support dual LAN?
Yes. The NP‑500‑IX includes dual Intel® Gigabit Ethernet ports for networking, redundancy, or multi‑network segmentation.
Is it suitable for harsh environments?
Yes. Its fanless aluminum enclosure and industrial‑grade components make it ideal for dusty, vibration‑prone, or thermally challenging environments.
What power input does it support?
The NP‑500‑IX supports a wide‑range 12–24VDC input for industrial cabinets, vehicles, and automation systems.
What mounting options are available?
It supports VESA and panel‑mount configurations depending on the enclosure and integration requirements.
What storage and expansion options are available?
It includes a 128GB mSATA SSD (standard) and supports M.2 B‑Key and M.2 E‑Key expansion modules.
What applications is it designed for?
The NP‑500‑IX is ideal for industrial automation, HMI systems, kiosks, control panels, and OEM embedded solutions.
How can I request pricing?
Contact IVC Displays directly for pricing, lead times, and configuration options.
